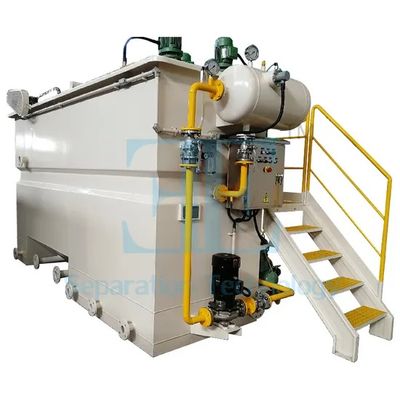

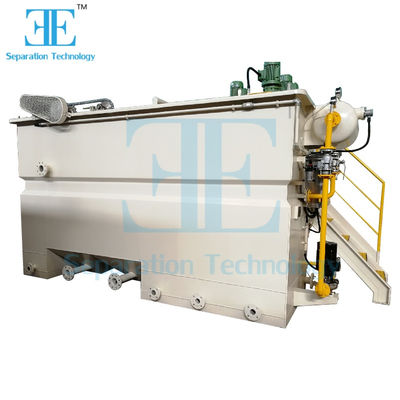

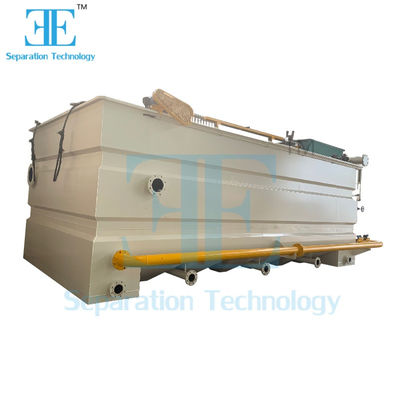

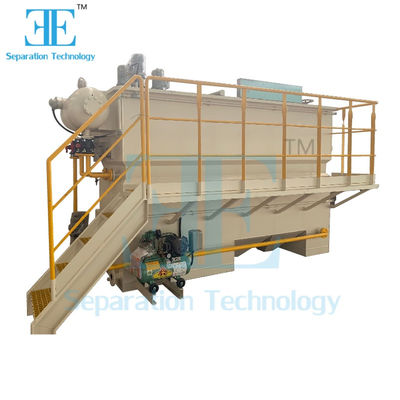

3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment

3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment
3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment

Büyük resim :  3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment

Ürün ayrıntıları:
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1
Fiyat: 13608
İletişim
Detaylı ürün tanımı
Model no.: DAF Kapasite: 5m3/saat
Hava kompresörü: 0.55kw Çözünmüş Pompa Gücü: 3kw
Sıyırıcı Gücü: 0.1kw Pıhtılaştırıcı Karıştırıcı Gücü: 0.55kw
Flokülasyon Karıştırıcı Gücü: 0.55kw pH Karıştırıcı Gücü: 0.55kw
Boyutlar: 3600*1700*1850mm Üretim kapasitesi: 100000/hafta
SS İçeriği: ppm veya mg/L Petrol içeriği: ppm veya mg/L
PH aralığı: 6 ~ 9 BOİ İçeriği: ppm veya mg/L
COD İçeriği: ppm veya mg/L
Vurgulamak:

3600*1700*1850mm Specification DAF System

,

0.1kw Skimmer DAF System

,

0.55kw Coagulate Agitator DAF System

Dissolved Air Flotation (DAF) Machine for Paper Making Industrial Wastewater Treatment
DAF System Introduction
The Dissolved Air Flotation system is a water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. This is achieved by dissolving air in the water under pressure and then releasing it at atmospheric pressure in a flotation tank. The released air forms microbubbles that adhere to suspended particles, causing them to float to the surface where they can be removed by a skimming device.
DAF System Work Process
  1. Wastewater enters coagulation (RT1) and flocculation (RT2) reaction tanks from the equalization tank
  2. Water coagulates with PAC and flocculates with PAM to form flocs
  3. Wastewater and dissolved water enter the DAF tank reaction zone
  4. Microbubbles and flocs combine to form low-density particles that float to the surface
  5. Scum is scraped to the slag tank while clean water collects below
  6. Most water is discharged while a portion recirculates to form dissolved water
3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 0
DAF System Fabrication Process
3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 1
Technical Data
3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 2
DAF System Features
  • Microbubble generation technology
  • Subsurface capture mechanism
  • Automatic slagging controlled by liquid level
  • Non-clogging release with high efficiency
Applications
  • Municipal sewage treatment
  • Slaughter house wastewater
  • Metallurgical industry wastewater
  • Spraying sewage
  • Printing & dyeing sewage
  • Metal-processing sewage
  • Mining stone wastewater
  • Electronic sewage treatment
Model Selection Criteria
To select the appropriate DAF system model, consider these factors:
  • Wastewater type (dairy, car washing, slaughter house, food processing, etc.)
  • Suspended solids content (ppm or mg/L)
  • Oil, grease, fat, and FOG content (ppm or mg/L)
  • pH level (6-9 preferred; corrosive substances may require special materials)
  • BOD and COD levels (ppm or mg/L)
3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 3
Packaging Information
3600*1700*1850mm Specification DAF System with 0.1kw Skimmer and 0.55kw Coagulate Agitator for Industrial Wastewater Treatment 4
